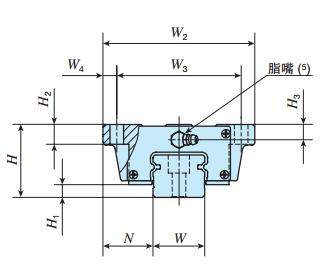

IKO MES35C2R600T1PS1直線導軌基本尺寸參數
- 直線導軌型號:
- MH30C2R1520T1SPS2
- 品牌:
- IKO
- 類型:
- 直線導軌
- 系列:
- 自潤滑直線導軌系列
- 滑塊 kg:
- 1.28
- 滑軌 kg/m:
- 4.82
- 裝配尺寸H:
- 42
- 裝配尺寸H1:
- 9
- 裝配尺寸N:
- 31
- W2:
- 90
- W3:
- 72
- W4:
- 9
- L1:
- 113
- L2:
- 52
- L3:
- 80.6
- L4:
- 123
- d1:
- 9
- H2:
- 10
- H3:
- 8

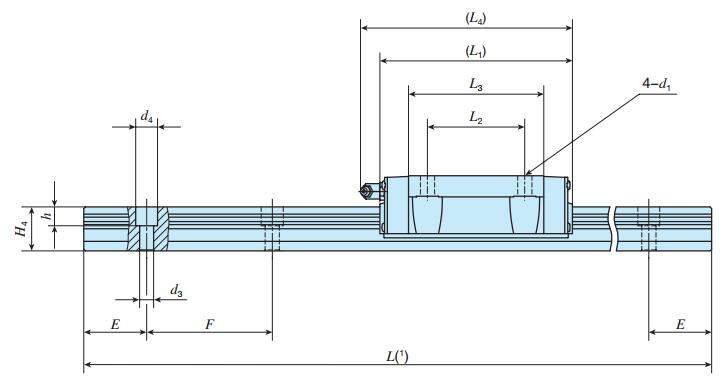

IKO MES35C2R600T1PS1尺寸參數
- 直線導軌型號:
- MH30C2R1520T1SPS2
- W:
- 28
- H4:
- 25
- d3:
- 9
- d4:
- 14
- h:
- 12
- M:
- —
- h1(2):
- —
- h2:
- —
- E:
- 40
- F:
- 80
- 附帶的滑軌(3) 安裝用螺栓 mm 螺釘?shù)墓Qx R:
- M 8x28
- 基本額定動 負荷(4) C N:
- 35 400
- 基本額定靜 負荷(4) C0N:
- 40 700
- 額定靜力矩(4) T0 N m:
- 623
- 額定靜力矩(4) Tx N m:
- 536 2 820
- 額定靜力矩(4) Ty N m:
- 536 2 820
